Thabiso Steel stands out as a reliable manufacturer and supplier of Carbon Steel WPHY 70 Pipe Fittings right here in Cape Town, South Africa. We take pride in offering top-notch fittings that are specifically designed for high-pressure and high-temperature pipeline applications. Our WPHY 70 pipe fittings are crafted for exceptional strength, durability, and reliability, ensuring that your connections are safe and leak-free, even in the toughest industrial settings. At Thabiso Steel, we focus on precision manufacturing, rigorous quality control, and compliance with international standards, so you can trust that our fittings will perform efficiently in the oil, gas, petrochemical, and power generation sectors.
Our Carbon Steel WPHY 70 Pipe Fittings are constructed from premium-grade carbon steel, with carefully controlled levels of carbon, manganese, and other alloying elements to boost their mechanical properties. These fittings deliver impressive tensile strength, typically ranging from 550 to 700 MPa, along with yield strength that’s more than adequate for high-pressure applications. They also offer solid impact resistance, excellent weldability, and good corrosion resistance, making them ideal for critical pipelines that face extreme pressure and temperature challenges.
| Specification: | ASTM A860 WPHY 70 Fittings |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al | |
| ASTM A860 WPHY 70 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.04 | 0.06 |
Tensile Strength (mpa) | Yield Strength (mpa) | |
ASTM A860 WPHY 70 Fittings | 485 | 570 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
ThabisoSteel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 70 Pipe Fittings products in Cape Town, South Africa. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

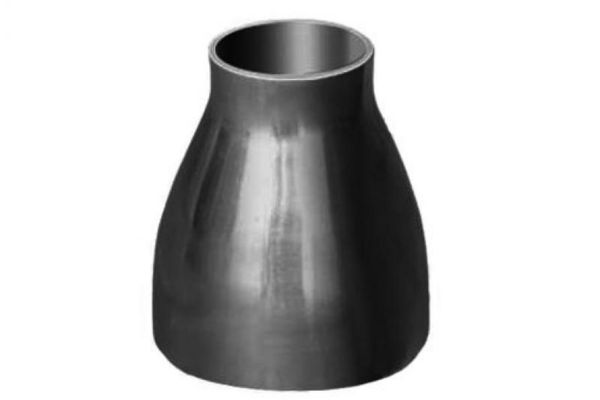

You’ll find Carbon Steel WPHY 70 Pipe Fittings commonly used in oil and gas pipelines, refineries, petrochemical plants, and power generation facilities. We offer a variety of fittings, including elbows, tees, reducers, and flanges, which are essential for connecting, redirecting, or terminating pipelines. With their remarkable strength, durability, and ability to withstand pressure fluctuations, WPHY 70 pipe fittings are a dependable choice for ensuring the integrity of vital industrial piping systems while facilitating safe and efficient fluid transport.
ThabisoSteel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cape Town, South Africa.
