Thabiso Steel, located in Cape Town, South Africa, has earned a solid reputation as a reliable manufacturer and supplier of top-notch **Carbon Steel WPHY 65 Pipe Fittings**. These fittings are crafted for durability, reliability, and outstanding performance, even in the toughest industrial settings. Built to handle high pressure, extreme temperatures, and demanding operational conditions, they ensure that pipeline systems operate safely and efficiently. Thabiso Steel follows strict international standards, guaranteeing precise dimensions, excellent weldability, and consistent quality. With a commitment to innovation, strength, and customer satisfaction, Thabiso Steel provides trustworthy piping solutions for the oil and gas, petrochemical, power generation, and infrastructure sectors throughout South Africa.
**Carbon Steel WPHY 65 Pipe Fittings** are made from carbon steel alloys that contain carefully controlled amounts of carbon, manganese, phosphorus, sulfur, and silicon. These fittings boast high tensile and yield strength, impressive impact resistance, and good toughness, making them reliable under high-pressure and high-temperature conditions. They maintain their shape, resist deformation, and offer excellent weldability. The mechanical and chemical properties of **WPHY 65 Pipe Fittings** make them ideal for critical industrial pipeline systems, ensuring long-lasting durability and structural integrity in demanding applications.
| Specification: | ASTM A860 WPHY 65 Fittings |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

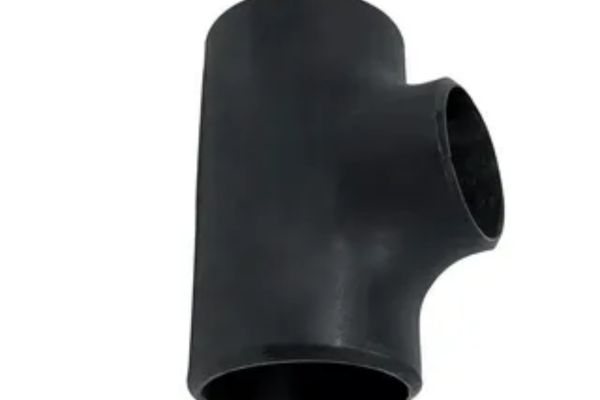

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 65 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Elongation | Tensile Strength | Yield Strength (0.2%Offset) |
| ASTM A860 WPHY 65 Fittings | 28 % | 515-690 | 415 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
ThabisoSteel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 65 Pipe Fittings products in Cape Town, South Africa. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find **Carbon Steel WPHY 65 Pipe Fittings** widely used in oil and gas pipelines, petrochemical plants, power generation facilities, and water transportation systems. They’re perfect for connecting, redirecting, or terminating pipes in high-pressure and high-temperature environments. Common applications include elbows, tees, reducers, and caps in industrial piping networks. **WPHY 65 Pipe Fittings** provide secure, leak-free connections, minimize maintenance needs, and guarantee long-term operational reliability. Their high strength, toughness, and precision make them the go-to choice for engineers and fabricators alike.
