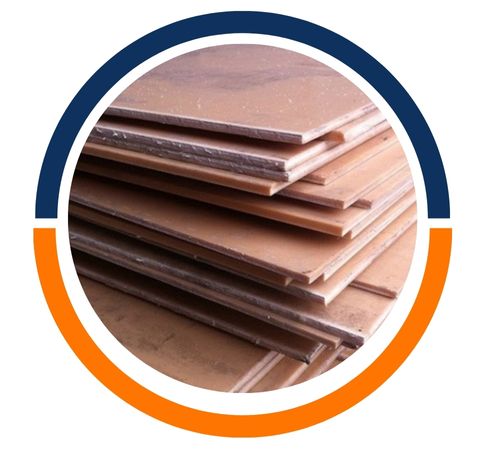

Thabiso Steel is a reputable manufacturer and supplier located in Cape Town, South Africa, with a focus on high-strength, wear-resistant materials like 500 BHN Sheets and Plates. Renowned for their quality and dependability, Thabiso Steel provides precision-engineered products that adhere to rigorous industrial standards. Their 500 BHN plates are crafted specifically for extreme wear applications, guaranteeing outstanding durability and performance. Catering to industries such as mining, construction, and heavy machinery, Thabiso Steel blends technical know-how with local insights to bolster infrastructure development across South Africa and beyond. With a strong commitment to excellence, Thabiso Steel stands out as a significant player in the steel manufacturing industry.
The 500 BHN (Brinell Hardness Number) Sheets and Plates are primarily made up of carbon, manganese, chromium, molybdenum, boron, and nickel, all of which enhance their hardness and toughness. These plates usually have a high carbon content (around 0.30%), which, when combined with various alloying elements, offers remarkable wear resistance. Their mechanical properties boast a tensile strength ranging from 1400 to 1800 MPa, a yield strength exceeding 1000 MPa, and impressive impact toughness, even in low temperatures. With a hardness rating of 500 BHN, they are perfectly suited for abrasive and high-impact environments, ensuring a long service life even under challenging conditions.
| Heat Treatment | Rolling/Normalised, N, Q+T |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) |
| Surface Paint | PVDF, PE, HDP, SMP, EP |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| THICKNESS MM | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | TYPV | TYPV |
| 4-13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13) -32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.50 | 0.30 | 0.004 | 0.62 | 0.41 |
| (32) -40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 1.00 | 0.60 | 0.004 | 0.64 | 0.43 |
| (40) -80 | 0.30 | 0.7 | 1.6 | 0.025 | 0.01 | 1.50 | 1.50 | 0.60 | 0.004 | 0.74 | 0.46 |
| Thickness | Hardness HBW | Typical yield strength MPa, |
| mm | min – max 1) | not guaranteed |
| 3 – 80 | 425 – 475 | 1100 – 1300 |
| (80) – 100 | 410 – 475 | 1050 – 1300 |
| (100) – 130 | 390 – 475 | 1000 – 1300 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ |  |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
