Thabiso Steel, a top-notch manufacturer and supplier based in Cape Town, South Africa, specializes in high-quality **Carbon Steel A36 Flanges** that are designed for strength, reliability, and versatility in both industrial and structural piping systems. These flanges are crafted to meet strict international standards, ensuring they offer excellent dimensional accuracy, mechanical integrity, and resistance to stress and corrosion. Perfect for connecting pipes, valves, and equipment, Thabiso Steel’s A36 Flanges guarantee secure, leak-proof joints across a wide range of applications. Renowned for their weldability, toughness, and long service life, these flanges are a go-to choice in construction, manufacturing, and energy sectors, providing efficient and dependable solutions for critical piping connections.
CS A36 Flanges Manufacturer in Johannesburg, Carbon Steel A36 Flanges Weight Chart, CS A36 Flanges Manufacturer in Johannesburg, CS A36 Flanges Distributor in Mbombela, Carbon Steel A36 Flanges Price List in South Africa, A36 Carbon Steel Flange Sizes in mm, CS A36 Flanges Distributor in Mbombela, A36 Carbon Steel Flange Exporter in Gqeberha, Carbon Steel A36 Flanges Supplier in Johannesburg

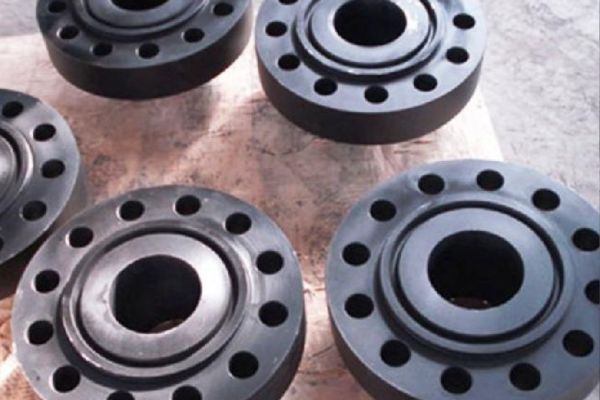

ASTM A36 Carbon Steel RTJ Flanges

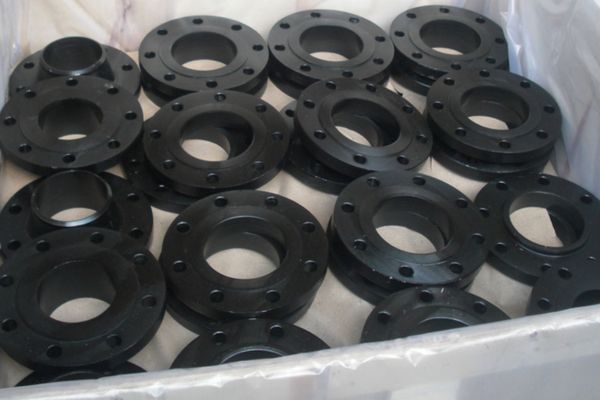

Carbon Steel A36 Forged Flanges

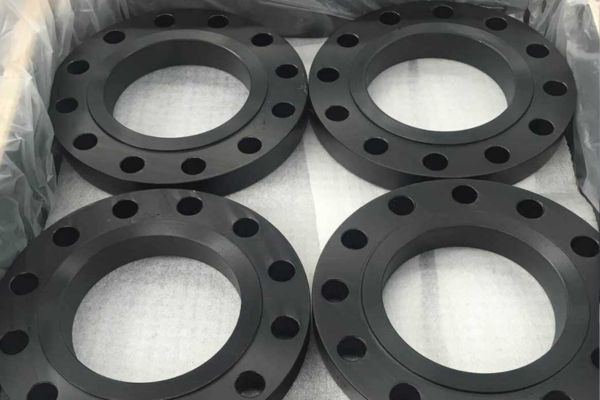

Carbon Steel A36 Flat Face Flanges
Table of Contents
What is Carbon Steel A36 Flanges?
**Carbon Steel A36 Flanges** are primarily made up of carbon, manganese, phosphorus, sulfur, and a few trace alloying elements, striking a perfect balance between strength, ductility, and weldability. They boast a tensile strength of about 400–550 MPa and a yield strength of around 250 MPa, which translates to excellent toughness, ductility, and impact resistance. Thanks to their mechanical properties, **A36 Flanges** are well-suited for high-pressure and structural applications, ensuring reliable performance and long-lasting durability even in demanding environments.
Carbon Steel A36 Flanges Stockist in Gqeberha, Carbon Steel A36 Flanges in Germiston, Carbon Steel A36 Flanges Distributor in South Africa, Carbon Steel A36 Flanges Price List in South Africa, CS A36 Flange Size Chart, Carbon Steel A36 Flanges in Mbombela, CS A36 Flanges Price in Germiston, CS A36 Flanges Stockist in Gqeberha, Carbon Steel A36 Flange Supplier in Johannesburg, ASME SA36 Flanges Supplier in South Africa
Carbon Steel A36 Flanges Specification
| pecifications | ASTM A36 / ASME SA36 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Carbon Steel A36 Flanges Chemical Composition
| Grade | C | Si | Mn | P | S |
| A36 | 0.25 max | 0.40 max | 0.80 – 1.20 | 0.040 max | 0.050 max |
Carbon Steel A36 Flanges Mechanical Properties
| Tensile Strength min. | Yield Strength min. | Elongation min. | Reduction of Area, min. | Hardness | ||
|---|---|---|---|---|---|---|
| MPa | ksi | MPa | ksi | % | % | HBW |
| 485 | 70 | 250 | 36 | 22 | 30 | 137-187 |
If You Are Looking To Buy High Quality
Pipes, Sheet, Fittings and Flanges
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Top Manufacturer and Supplier of Carbon Steel A36 Flange in Cape Town, South Africa
ThabisoSteel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A36 Flanges in Cape Town, South Africa. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
Manufacturing Standards / Pressure Rating of Carbon Steel A36 Flanges
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, a36, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, a36, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, a36, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, a36, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Carbon Steel A36 Flanges Exporter in Mbombela, A36 Carbon Steel Flange Supplier in South Africa, CS A36 Flanges Stockist in Gqeberha, ASME SA36 Flanges Supplier in Gqeberha, Carbon Steel A36 Flanges Size Chart, Carbon Steel A36 Flanges Exporter in Johannesburg, CS A36 Flanges Price in Germiston, Carbon Steel ANSI A36 Flanges Supplier in Gqeberha, CS A36 Flanges Supplier in South Africa, Carbon Steel A36 Flanges in Germiston

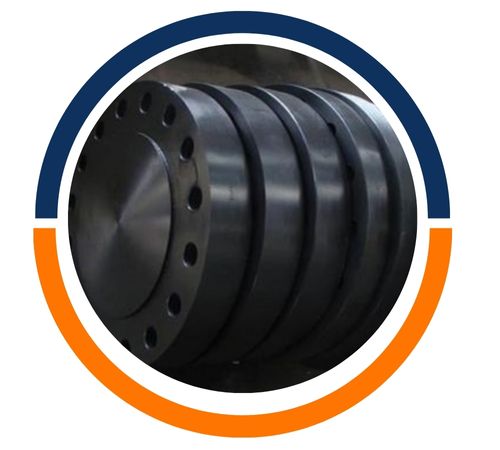

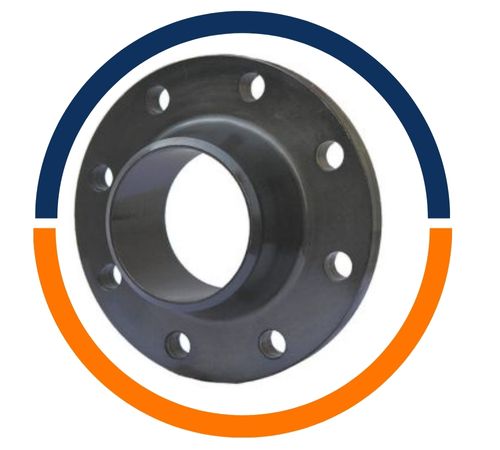

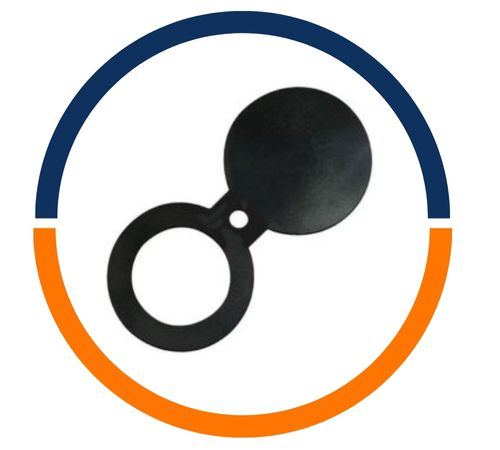

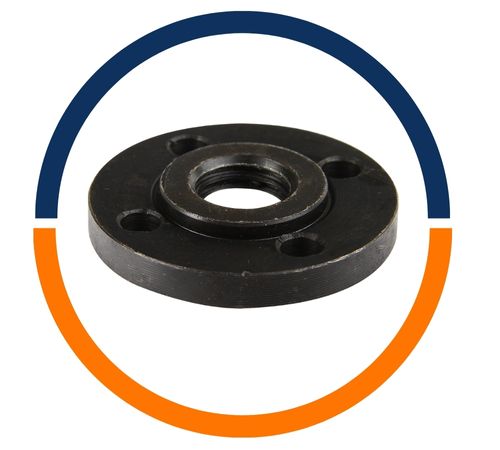

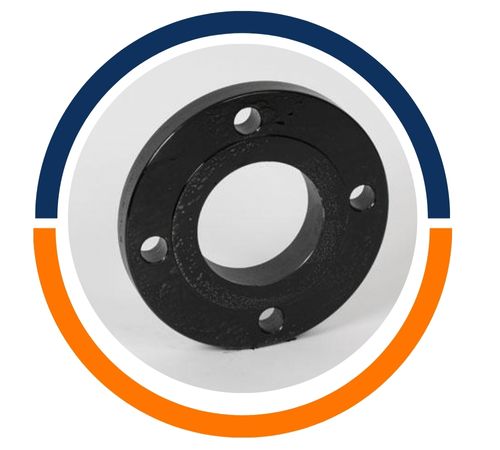

Types of Carbon Steel A36 Flanges
Carbon Steel A36 Flange Dimensions Chart
| NPS | O.D. of Flange | Flanges Thickness | Diameter of RF | Diameter of Hub at Base | Lengtd Tdru Hub | Bore or Diameter | Dia. of Hub at Bevel | Radius of Fillet | Deptd of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding (WN) Neck | Slip-On (SORF) Threaded (NPT) Socket (SWRF) | Lap Joint (Loose) | Slip-on (SORF) Socket (SWRF) | Lap Joint (Loose) | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.a36 | 18.00 | 1/2 | 1-15/16 |
| a36 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | a36.a36 | a36.25 | a36.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
Carbon Steel A36 Flanges Weight Chart
| Nominal Pipe Sizes (NPS) | Slip On (SORF) | Threaded (NPT) | Socket Weld (SWRF) | Lap Joint (Loose) | Blind (BLRF) | Weld Neck (WRNR) |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 |
| 5 | 15 | 15 | 15 | 15 | a36 | 21 |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 |
| 18 | 130 | 130 | 130 | 160 | 2a36 | 165 |
| a36 | 165 | 165 | 165 | 195 | 285 | 197 |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 |
| 24 | 2a36 | 2a36 | 2a36 | 275 | 430 | 268 |
Carbon Steel A36 Flange Exporter in Gqeberha ,ASTM A36 CS Flanges Manufacturer in Johannesburg, Carbon Steel A36 Flanges in Germiston, Carbon Steel A36 Flanges Price List in South Africa, Carbon Steel ANSI A36 Flanges Weight Chart, CS A36 Flanges Manufacturer in Johannesburg, A36 Carbon Steel Flanges Distributor in South Africa, Carbon Steel A36 Flange Sizes in mm, Carbon Steel A36 Flanges Distributor in Johannesburg
Uses of Carbon Steel A36 Flanges
You’ll find **Carbon Steel A36 Flanges** commonly used in oil and gas pipelines, water distribution systems, petrochemical plants, and mechanical assemblies. They’re ideal for connecting pipes, valves, pumps, and equipment in industrial and structural projects that require durable, high-strength, and leak-proof solutions. Additionally, they play a crucial role in fabrication, construction frameworks, and power generation systems where toughness, weldability, and long-term reliability are key. Thabiso Steel’s A36 Flanges offer engineers, contractors, and industrial operators safe, efficient, and robust solutions for secure and high-performance piping connections across a variety of applications.
