Thabiso Steel is a reliable manufacturer and supplier located in Cape Town, South Africa, focusing on top-notch steel products, including the popular A36 Steel Sheet and Plate. With a strong dedication to quality, Thabiso Steel delivers durable and cost-effective steel solutions designed to meet the demands of the construction, engineering, and manufacturing sectors. Their A36 steel offerings are celebrated for their strength, versatility, and adherence to international standards. Supported by a talented team and state-of-the-art facilities, Thabiso Steel guarantees a dependable supply and customer satisfaction throughout South Africa and beyond.

ASTM A36 Carbon Steel Plate Manufacturer in Johannesburg, A36 Cold Rolled Plate Weight Chart, A36 Steel Sheet Distributor in Mbombela, A36 Mild 200mm Steel Plate Price List in South Africa, A36 Hot Rolled Steel Plate Sizes in mm, ASTM A36 Plates Distributor in Mbombela, ASTM A36 Mild Steel Plate Exporter in Gqeberha,A36 Carbon Steel Plates and Sheet Supplier in Johannesburg, ASME SA36 Steel Plates Stockist in Mbombela

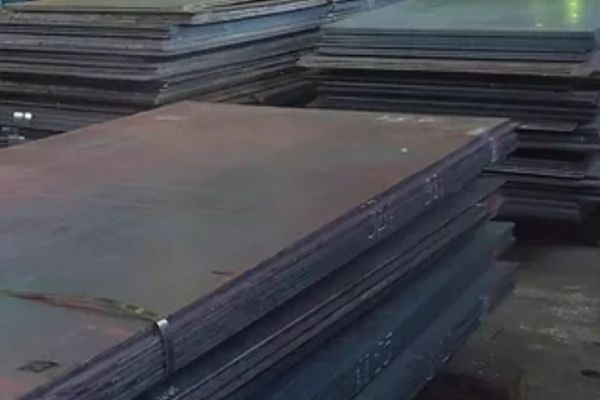

A36 Steel Plates

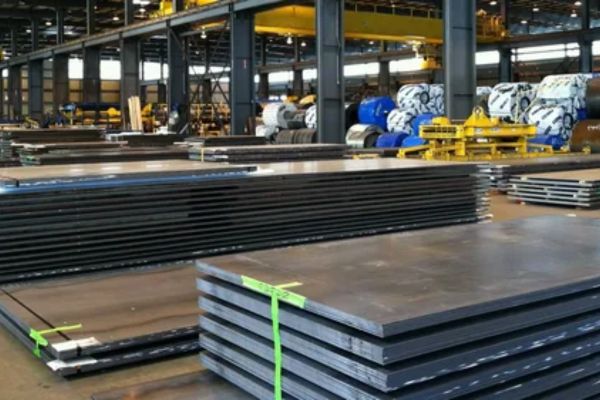

ASME SA36 Carbon Steel Plates

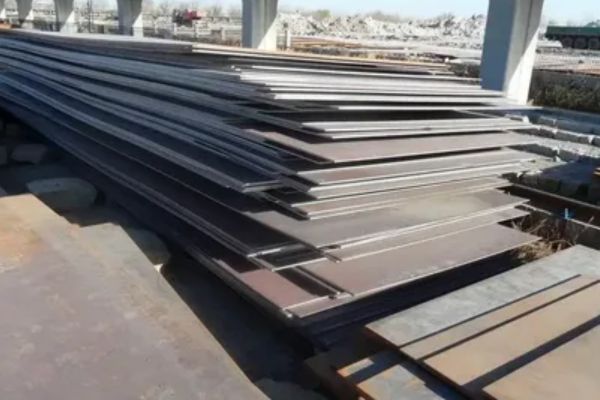

A36 Carbon Steel HR Plates

What is A36 Steel Sheet and Plate?

A36 Steel Sheet and Plate is a low-carbon steel alloy primarily made of iron, containing about 0.25% carbon, 0.4% silicon, 1.03% manganese, 0.04% phosphorus, and 0.05% sulfur. This unique blend provides excellent weldability and machinability. In terms of mechanical properties, A36 steel boasts a minimum yield strength of 250 MPa and an ultimate tensile strength that falls between 400 and 550 MPa. It also offers good elongation and toughness, making it suitable for a wide range of structural applications. Its combination of strength, ductility, and affordability makes it a favored choice across various industries.

Carbon Steel ASTM A36 Structural Steel Plates Stockist in Gqeberha, Mild Steel ASTM A36 Hot Rolled Plates in Germiston, ASTM A36 Sheet Distributor in South Africa, Hot Rolled ASTM A36 Plate Price List in South Africa, ASME SA36 Carbon Structural Steel Sheet Supplier in Germiston, ASTM A36 MS Plates Size Chart, ASTM A36 HR Plates in Mbombela, ASME SA36 Carbon Structural Plates Price in Germiston, ASME SA36 Structural Low Carbon Plate Dealer in South Africa

A36 Steel Sheet and Plate Specification

Item	Carbon Structural Steel Plates – ASTM A36
Thickness	5mm-150mm
Width	1000mm-4500mm
Length	3000mm-18000mm

A36 Steel Sheet and Plate Chemical Composition

Grade	C	Si	Mn	P	S
ASTM A36	0.25 max.	0.4 max.	0.8-1.2	0.035 max.	0.035 max.

A36 Steel Sheet and Plate Mechanical Properties

Tensile strength, kis [MPa]	Yield strength, min, kis [MPa]	Elongation in 8 in. [200 mm], min, %	Elongation in 2 in. [50 mm], min, %
58-80 [400-550]	36 [250]	20	23

Astm A36 Carbon Steel Plate Equivalent Grades

EN	GB	USA	BS	ISO	JIS	IS
S235J2G4, Fe360D2	Q235D	A36	40EE	Fe 360B	SM 400 A	IS 226

If You Are Looking To Buy High Quality
Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of A36 Steel Sheet and Plate in Cape Town, South Africa

ThabisoSteel is one of the most prominent manufacturers and suppliers of superior quality A36 Steel Sheet and Plate in Cape Town, South Africa. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.

A36 Plate Thickness Chart

Thickness (Inches)	Tolerance Over Specified Thickness, For Widths Given, in Inches
Thickness (Inches)	48 to 59	144 to 167	Thru 47	60 to 71	96 to 107	72 to 83	132 to 143	120 to 131	108 to 119	84 to 95
To under 1/4	0.030	–	0.030	0.030	0.030	0.030	0.040	0.030	0.030	0.030
1/4 to under 5/16	0.030	–	0.030	0.030	0.030	0.030	0.040	0.040	0.030	0.030
2 to under 3	0.090	0.150	0.090	0.090	0.110	0.100	0.140	0.130	0.120	0.100
3/8 to under 5/8	0.030	0.060	0.030	0.030	0.030	0.030	0.050	0.040	0.040	0.030
5/16 to under 3/8	0.030	0.050	0.030	0.030	0.030	0.030	0.040	0.040	0.030	0.030
6 to under 10	0.240	0.270	0.230	0.240	0.240	0.240	0.240	0.240	0.240	0.240
3/4 to under 1	0.030	0.070	0.030	0.030	0.040	0.030	0.060	0.050	0.050	0.040
1 to under 2	0.060	0.110	0.060	0.060	0.070	0.060	0.100	0.100	0.080	0.060
3 to under 4	0.110	0.150	0.110	0.110	0.130	0.110	0.140	0.140	0.140	0.110
4 to under 6	0.150	0.200	0.150	0.150	0.150	0.150	0.150	0.150	0.150	0.150

A36 Cold Rolled Steel Plate Weight Chart

ASTM	Thickness (mm)	Weight (kg/m)
ASTM A36	3 mm	23.55 kg
	4 mm	31.4 kg
	5 mm	39.25 kg
	6 mm	47.1 kg
	8 mm	62.8 kg
	10 mm	78.5 kg
	12 mm	94.2 kg
	16 mm	125.6 kg
	20 mm	157 kg
	22 mm	172.7 kg
	25 mm	196.25 kg
	28 mm	219.8 kg
	32 mm	251.2 kg
	36 mm	282.6 kg
	40 mm	314 kg
	45 mm	353.25 kg
	50 mm	392.5 kg
	55 mm	431.75 kg
	60 mm	471 kg
	65 mm	510 kg
	70 mm	549.5 kg
	75 mm	588.75 kg
	80 mm	628 kg
	90 mm	706.5 kg
	100 mm	785 kg

Sizes of A36 Steel Sheet

TYPE	ALLOY	IMPERIAL SIZES IN STOCK
		Thickness	Length	Width
Coil	ASTM A36	1/4 Inch, 3/16 Inch, 3/8 Inch, 5/16 Inch, 1/2 Inch, 7/16 Inch	Any	60 Inch, 48 Inch,72 Inch
Cut to Length		3/16 Inch to 1/2 Inch	Any	84 Inch to 96 Inch
		3/16 Inch to 1/2 Inch	Any	96 Inch, 84 Inch
Hot Rolled (Strip Mill)		3/8 Inch to 12 Inch	240 Inch – 480 Inch	72 Inch to 144 Inch
Discrete (Mill Rolled)		1/4 Inch, 3/16 Inch, 5/16 Inch	240 Inch – 480 Inch	84 Inch to 120 Inch

A36 Carbon Plates Exporter in Mbombela, ASTM A36 Structural Low Carbon Plate Supplier in South Africa, ASTM A36 Mild Steel Plates and Sheet Stockist in Gqeberha, ASTM A36 Carbon Steel HR Plates Supplier in Gqeberha, ASME SA36 HR Plates Size Chart, ASTM A36 Carbon Steel Sheet Exporter in Johannesburg, A36 Steel Plates Distributor in Germiston, ASME SA36 Structural Steel Sheet Supplier in Gqeberha

Types of A36 Steel Sheet and Plate

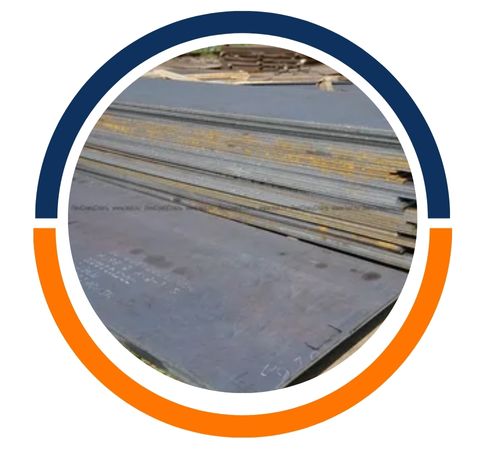

A36 Hot Rolled Steel Plate

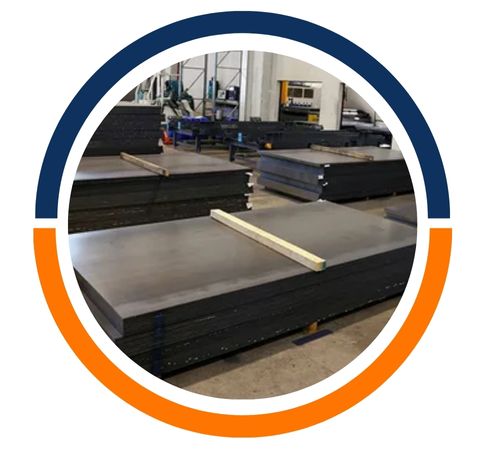

Carbon Steel ASTM A36 Structural Steel Plates

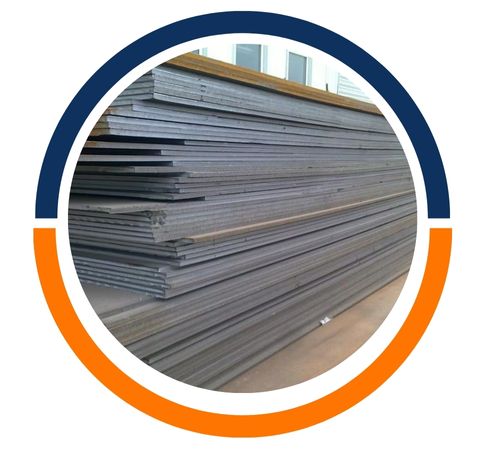

A36 Cold Rolled Steel Plate

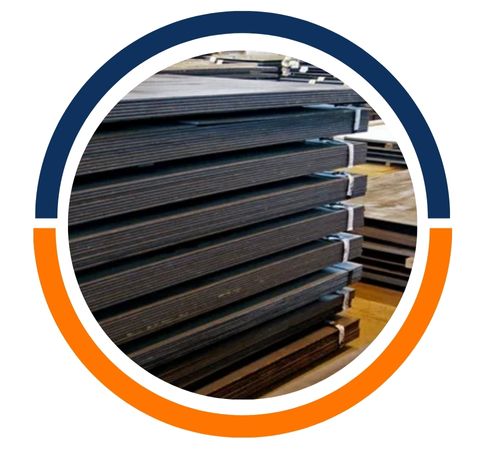

ASTM A36 Low Carbon Steel Plates

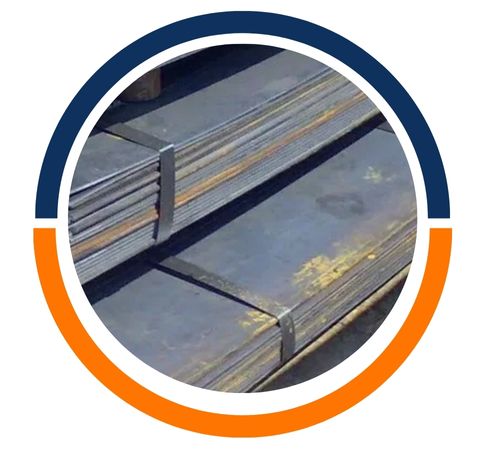

ASTM A36 Carbon Steel Plate

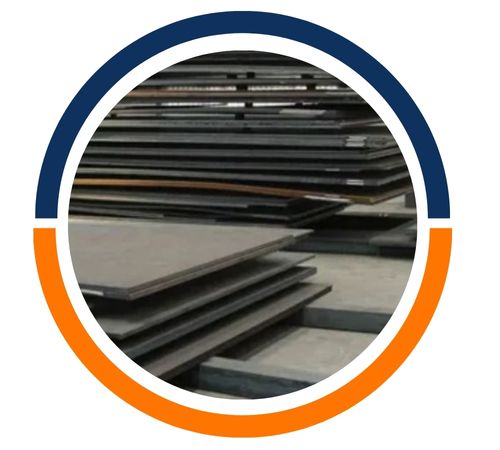

A36 Cold Rolled Steel Sheet

ASTM A36 HR Plates Stockist in Gqeberha, ASTM A36 Plates Distributor in Mbombela, ASTM A36 Mild Steel Plate Exporter in Gqeberha,A36 Carbon Steel Plates and Sheet Supplier in Johannesburg, ASTM A36 HR Plates in Mbombela, ASME SA36 Carbon Structural Plates Price in Germiston, A36 Carbon Plates Exporter in Mbombela, Hot Rolled ASTM A36 Plate Price List in South Africa

Uses of A36 Steel Sheet and Plate

A36 Steel Sheet and Plate is extensively used in structural and industrial applications thanks to its strength, weldability, and versatility. It’s commonly found in the construction of bridges, buildings, and infrastructure projects. Fabricators depend on A36 for producing heavy machinery, automotive parts, and storage tanks. Additionally, it’s a go-to material in shipbuilding, oil and gas platforms, and agricultural equipment. A36’s ease of cutting, welding, and shaping makes it perfect for both custom and large-scale projects. Thabiso Steel provides this reliable material to cater to a diverse array of engineering and architectural needs throughout South Africa.
